rubber tread for plastic wheels 696565 - 2 Wheel Kit

rubber tread for plastic wheels 696565 - 2 Wheel KitWheel Kit, 2 7" Black Plastic Wheels w Rubber Tread Fits 3 8" axle shaft, includes Axle Caps NOTE: Axle is NOT included. Wheel Kit includes 1 pair of 7" Black Plastic Wheels with 1. 5" wide Rubber Diamond Tread, 3 8" axle bore. Also includes 2 Push On 3 8" Decorative Black Plastic Pal Nuts, designed to fit 3 8" axle shaft. Axle caps are press on fit, no special tools required. For battery chargers with 3 8" axle shaft. Also used on barbecue grills and

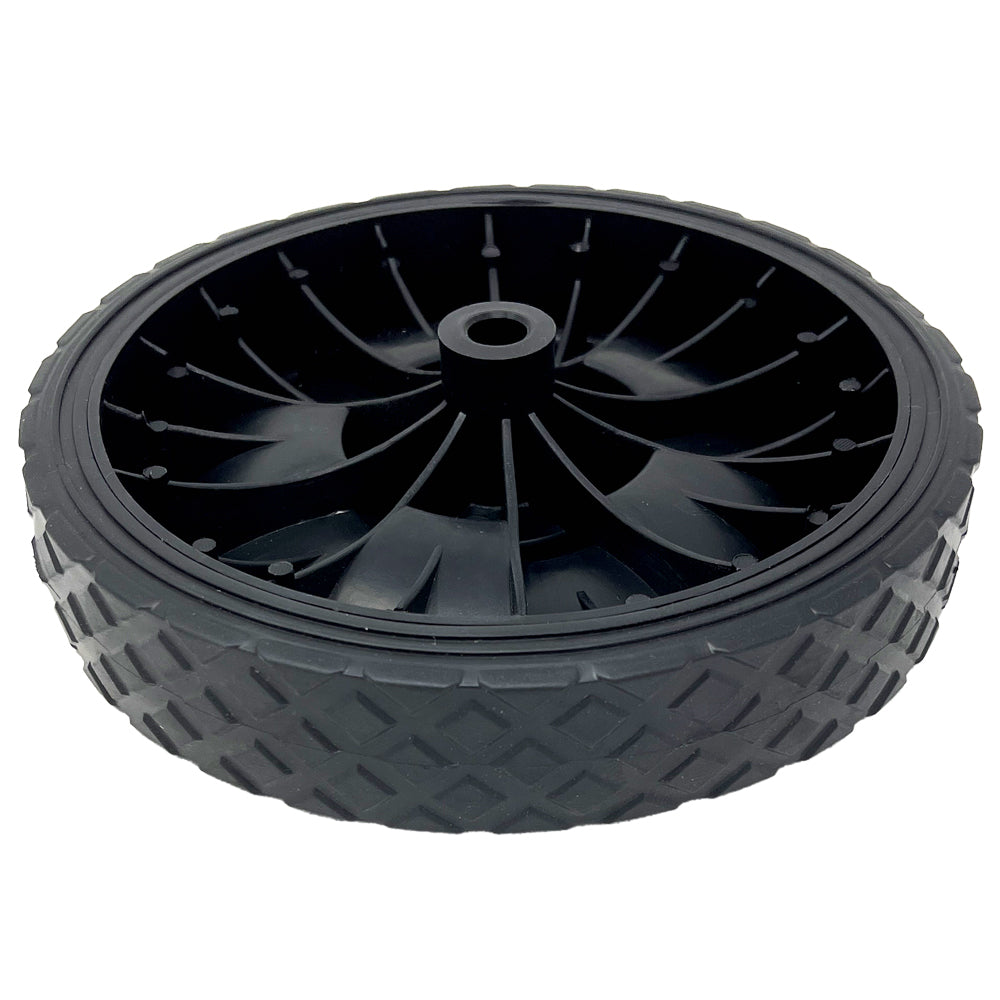

Wheel Kit, 2 - 7" Black Plastic Wheels w/ Rubber Tread
Fits 3/8" axle shaft, includes Axle Caps
NOTE: Axle is NOT included.

Wheel Kit includes 1 pair of 7" Black Plastic Wheels with 1.5" wide Rubber Diamond Tread, 3/8" axle bore. Also includes 2 Push-On 3/8" Decorative Black Plastic Pal Nuts, designed to fit 3/8" axle shaft. Axle caps are press-on fit, no special tools required. For battery chargers with 3/8" axle shaft. Also used on barbecue grills and other light equipment, check dimensions for proper fit.

Replaces these original equipment wheel sets:
Associated 605184, 610091, 610553 (used on Associated charger models 6001, 6001A, 6002, 6002A, 6002B, 6027B, 6127)
Schumacher 0099-000120, 0099000120, 0099-000471, 0099000471

For wheel only, see 696564.
For 3/8" axle caps only, see 609081.

Specifications

Load Rating: 35 lbs.
Material: Plastic with Diamond Rubber Tread
Weight: .7 lb. (each wheel)
Color: Black Outside Diameter: 6.94" (150mm)
Track Width: 1.40" (36mm)
Hub Offset (spaces wheel tread from cabinet): 0.35" (9mm)
Hub Width at Axle Tube (length of bore): 1.38" (35mm)
Axle Bore Diameter: 0.40" (10.2mm) (accommodates 3/8" or 10mm diameter axle)
Warranty: 90 Day Limited Warranty against manufacturing defects.

INSTALLATION NOTE

PLEASE NOTE THE 35 LB LOAD RATING ON THIS WHEEL. DO NOT INSTALL ON 2-WHEEL  EQUIPMENT THAT WEIGHS OVER 70 LBS. USE ONLY SMOOTH AXLE SHAFTS - DO NOT USE THREADED ROD OR UNDERSIZE AXLES.
